PT60V Veterinary 15" Touchscreen Color Doppler Ultrasound Machine
AU$16,399.00
In stock
Product Details
PT60 Vet touch color Doppler ultrasound system (multi-Point Touch support), perfect for equine, bovine and small animal medicine, is a true simple smart in ultrasound with portability, ease of use, reliability, and durability. PT60 Vet offers a new level of intuitive operation, innovative productivity tools and powerful processing for empowering pregnancy control & reproduction diagnosis, abdominal exams, tendon exams, stallion genital tract, foetal sexing. The result is an all-new level of efficiency and image quality.
.
Application of Color Doppler Ultrasonography in Bovine and Equine Reproduction
- Applicable to equine, large animal (beef, dairy cattle), small animal, zoo mammal, and marine mammal medicinebody scans, for example, Abdomen, Reproduction, Gynecology, Cardiology, Small Parts
- and veterinary clinic & research departments and livestock farm, Zoo, etc
PREMIUM FEATURES

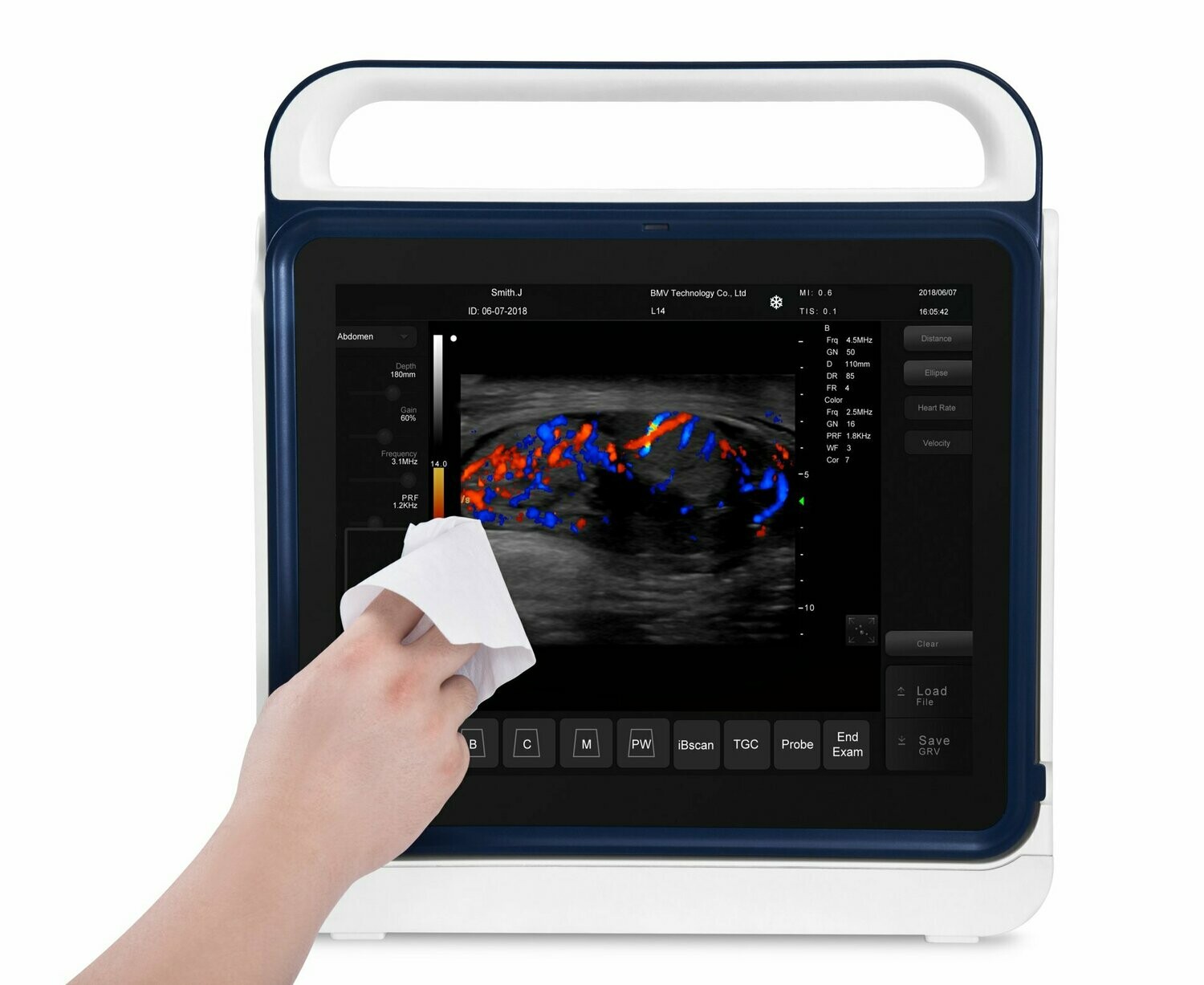

- Easy to clean
- Simplified workflow with focused diagnosis
- Efficient specialized point-of-care application exams
- Hi-Res 15'' LCD capacitive full touch-screen monitor
- New designed user-friendly software
- Beam steering for better needle visualization
- Ultrasound-guided lithotripsy function
- Advanced imaging technology and superior image quality can provide fast and precise scans.
- Compact design to be with you wherever
- Multiple transducers to enable extended diagnosis
- Advanced simple user interface performance
- Digital TGC Preset
- Convenient Handle, MicroProbe Connector
- Built-in 2+ hour battery
- External keyboard (option)
- Mounting systems: wall mount or ergonomic cart(option)
Trolley
Completely adjustable, with large wheels, for smooth and safe transportation.
Travel case
A dedicated customized travel case either for roll along or as a rucksack.
Technical Specification
- System Overview
Ultrasound platform: Based on Windows high‐speed hardware platform,provides a cutting‐edge 64‐beam imaging, can handle up‐to 4500 frames image per second.
Imaging Modes: B/C/D triplex mode
Dual live: B/C,B/PW,B/M
Dual‐split: B/C, B/M, B/PW
Gray scale levels: 256
Transducer Type: Convex Array, Linear Array, Rectal Array
Transducer frequency: 2‐15 Mhz
Transducer connector: one active transducer connector port/support extend extension transducer connector(reserved)
Scanning depth: up to 351mm
Language:
Software: Spanish, Russian, Italian, Deutsch, French, Italian, Korean, Magyar, Polish, Romana, Chinese, and more(ODM support!)
Keyboard Input: English, Spanish, and more(ODM support!)
2. Physical Specification
System Dimension: Height: 402mm Width: 385mm Depth: 53mm
Weight: Around 5.5 kg (Include Battery)
Physical channels: 64
Transducer element: 128
Monitor: 15'' high resolution LCD monitor with tilting to view it freely and comfortably
Weight: Around 5.5 kg (Include Battery)
Physical channels: 64
Transducer element: 128
Monitor: 15'' high resolution LCD monitor with tilting to view it freely and comfortably
Resolution: 1024×768
Brightness Adjustable
Max Opening Angle: 45°
Brightness Adjustable
Max Opening Angle: 45°
Materials of systems body: Fireproofing and anti‐corrosion ABS
Power: System operates via AC power & battery
AC Adapter: Model Mango-BMV-14AD
Voltage: 100‐240VAC
Frequency: 50/60 Hz
Currency: 5.7A
Output: 14V
Battery: (optional): Model: LY606090
Lithium‐Ion, 11.1V , 7000mAH
Charge to Full: 6hours
Max Duration: 150 minutes realtime scan
Max Duration: 150 minutes realtime scan
Operating Environment: Temperature: 0‐40 °C
Humidity: 30%‐85% (non‐condensing)
Pressure: 700hPa‐1060hPa
Pressure: 700hPa‐1060hPa
Storage and Transport: Temperature: -20°C ‐55 °C
Humidity: 30%‐95%(non‐condensing)
Pressure: 700hPa‐1060hPa
- User Interface
Control Panel:
- Easily be adjusted to the user's preferred height( up to 45°)
- iBscan™ Quick Image Optimization
- One Touch to Zoom
- Image clip board for thumbnail view
- Alphanumeric QWERTY keyboard with Backlight
- Ergonomic Soft Key Operations
- User Defined Blank keys: shortcut for easy access to system menus and active parameter adjustment
Boot‐up and Power off: Hard boot‐up in 35s
Power off in 2s
Comment:
- Text and arrow available
- Size of text and arrow adjustable
- Set home position for comment initiation
- Full packages for all application
- User‐defined text
Bodymark :
- Bodymark patterns for all application
- Support transducer mark
Screen Displayed Info:
- BMV Logo
- Hospital Name
- Exam Date
- Exam Time
- Acoustic Power
- Frequency, Angle
- Thermal Index
- ID, Name
- Probe
- TGC Curve
- Focus Position
- Thumbnail
- Image Parameters
- Measurements
- Imaging Processing Technologies:
Phase Shift Harmonic Imaging
Tissue Harmonic Imaging
Compound Imaging
Speckle Suppression Imaging
Wide‐angle imaging
Panoramic focusing technology
Tissue Harmonic Imaging
Auto Optimization
Automatically expand the image to full screen
ZOOM imaging
Tissue Harmonic Imaging
Compound Imaging
Speckle Suppression Imaging
Wide‐angle imaging
Panoramic focusing technology
Tissue Harmonic Imaging
Auto Optimization
Automatically expand the image to full screen
ZOOM imaging
- Measurement & Calculations
B mode: Distance, angle, area, volume, trace length, distance ratio
M mode: Distance, time, slope, HR Software packages: abdomen, cardiac, gynecology, obstetrics, urology,, small parts (thyroid), etc.
- Input and Output
- HDMI: 1(reserved)
- Ethernet: 1(reserved)
- USB 3.0: 2
- MIC: 1
- DC in: 1
- Intelligent Workflow/Storage/Review
- Storage:
- Intelligent patient data management platform with integrated search engine for patient data
- Intelligent data backup/ restore
- 64G(standard)/128G(optional) integrated hard disk for large number of patients can be store
- Cine review: Auto, Manual (auto review segment can be set), supports linked cine review for 2D, M/D images
- Cine memory capacity(Max.):
- Clip length presettable: 1‐60s
- B mode: 12394 frames
- M mode: 181.1s
- ‐ PW/CW: 169.6s
- Color: 10121 frames
- Exam Management
- Powerful “Station” for patient management
- Patient quick search and retrieve
- Able to review current exam and past exam
- Support new exam, activate exam, continue exam
- Able to measure on stored images and cines
- Able to export file as JPG/AVI/PNG/DICOM/DICOM‐JPEG/BMP
- Able to back up data to USB device
- Multi‐frequency probes
Rectal Convex probes
RC3.5/R60/D-3 color Doppler Rectal convex array transducer:
provides you a wide field of view with phenomenal depth than rectal linear probe
Bovine Animal Application:This type curve convex probe for cattle helps you make more accurate bovine pregnancy diagnosis between 30 and 60 days because of its deeper penetration with curvedprobe technology,in additional, it also has numerous other abdominal applications.
- Frequency Bandwidth: 2.0‐5.0MHz
- Central frequency: 3.5 MHz
- Radius: 60 mm
- View angle: 61 degrees
- Scanning Depth: 36‐351 mm
- Element: 128
Rectal Linear probes:
RL10.0/40-64D-3 Rectal color Doppler Linear probe:
Bovine(beef,dairy cattle) Animal Application: Fertility,Pregnancy,Sex determination,Non reproductive applications.
- Frequency Bandwidth: 5.0‐10.0 MHz
- Center frequency: 7.5MHz
- Scanning width: 40 mm
- Scanning Depth: 18~184 mm
- Element: 128
- Peripherals and Accessories (Optional)
Digital B/W Video Printer
MITSUBISHI CP93W(suggested)
- High Speed Printing
- High‐density 325 dpi thermal Head
- Worldwide compatibility
- Simple and Convenience to Operate
SONY UP-895MD
- ‐ Built‐in WIFI Adapter
- Encryption: WPA/WP2/WPAI, 64/128/152‐ bit WEP, WPS
- Max transfer speed: 150Mbps
- Protocol: 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Graph/text printer:
- All Brand's different model printers
- Complied Standards:
CSA C22.2 No. 601‐1
EN 60601‐1 and IEC 60601‐1
EN 60601‐1‐2 and IEC 60601‐1‐2
EN 60601‐1‐6 and IEC 60601‐1‐6
EN 60601‐2‐37 and IEC60601‐2‐37
EN 62304 and IEC 62304
EN 62366 and IEC 62366
EN ISO 17664 and ISO 17664
Standard configurations:
| Model | Commodity/Descriptions |
| PT60-Vet | PT60 Vet main unit+Color / PW64 channels (Enhanced processor) |
| 15" high definition LCD monitor | |
| Capacitive touch screen | |
| LCD Monitor easily be adjusted to the user's preferred height( up to 45°) | |
| One transducer connector | |
| Two special-designed probe holders | |
| Two USB ports+One s-video out port+Shared Service Package | |
| 64G SDD storage | |
| User defined exam settings | |
| Plenty of veterinary measurement&calculation software packages | |
| RL10.0/40-64D-3 | RL10.0/40-64D-3 Rectal color Doppler Linear probe |
| LY606090 | Rechargeable lithium-ion battery 7000mAh |
| MANGO | MANGO-BMV-14AD |
Optional:
| Model | Commodity/Descriptions |
| LY606090 | Extra Lithium-ion battery |
| RC3.5/R60/D-3 | RC3.5/R60/D-3 color Doppler Rectal convex array transducer |
| RL10.0/40-64D-3 | RL10.0/40-64D-3 Rectal color Doppler Linear probe |
| MANGO | AC Adapter for systems |
| SW126100 | Battery Charger |
| P93W-Z | MITSUBISHI P93W-Z Printer |
| HP-M1005 | HP LaserJet M1005 Printer |
| MT1 | Mobile trolley |
| WTC-1 | Aluminum alloy carry case |
Warranty:
Main unit: 2 Years
Probes: 1 Year
Free Lifetime upgrade to new versions
