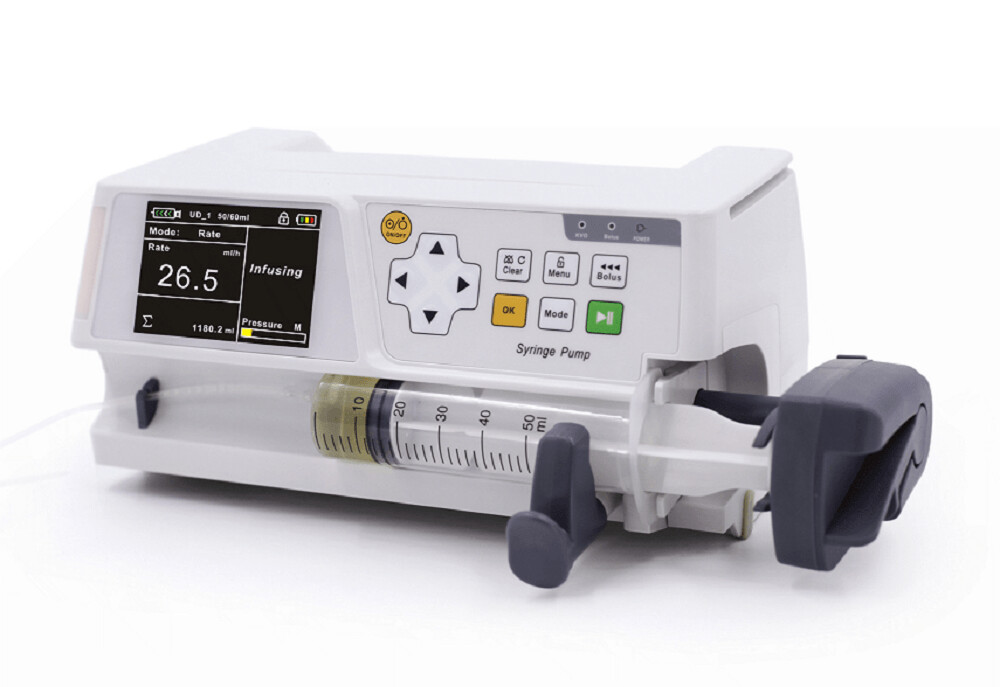

SP300 Syringe Pump

Applicable syringes

5ml,10ml,20ml,30ml,50ml,60ml of any standard

Accuracy

+/- 2% with correct calibration

Rate mode

50ml(60ml): 0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step)
30ml: 0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step)
20ml: 0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step)
10ml: 0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step)
5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step)
(Programmable 0.01ml/h~9999.9ml/h)

Time Mode

SOL. VOL: 0.1-9999.9ml (0.1ml step)
TIME: 00: 01-99:59min (1min step)

Dose Mode:

Volume: 0.1-999.9ml(0.1ml step)
DRUG MASS: 0.1-999.9mg 0.1mg step)
DOSE: 0.001-9999ug/kg/min(0.001ug/kg/min step)
WEIGHT: 0.1-300kg(0.1kg the least step)
Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h, mg/kg/h, g/kg/h, ug/min, mg/min, g/min, ug/h, mg/h, g/h, U/min, U/h, IU/h, U/kg/h, ml/h

T otal Volume Range

0.1-9999.9ml (0.1 ml step)

Drug library Mode

10 categories of drugs,

1amounts to 1030 kinds of drug names,

7kinds of dose units, such as ug/kg/min, mg/kg/min, etc.
Makes drug dispensing more convenient and safer. (Available for SP300 only)

Sequential mode

Available for SP300 only

Purge Rate

50ml(60ml): 1500.0ml/h
30ml: 1200.0ml/h
20ml: 800.0ml/h
10ml: 400.0ml/h
5ml: 200ml/h
Programmable and adjustable

KVO Rate

0.1~5.0 ml/h, Programmable and adjustable

DPS dynamic pressure

Three levels setting:
LOW(60(±15)kPa),
MEDIUM (90(±15)kPa)
HIGH (120(±15) kPa)

Alarms

Syringe Holder Loose,
Syringe Plunger Disengagement,
Syringe Flange Insertion Error,
Syringe Not Calibrated,
Occlusion,
Syringe Empty,
Rate Abnormal,
Battery Empty,
No Battery,
Infusion Complete,
Syringe Near Empty,
No Action,
Battery Low
Three levels of alarm volume LOW, MEDIUM or HIGH

Bolus Rate

5ml: 0.1~200ml/h,
10ml: 0.1-400ml/h,
20ml: 0.1-800ml/h,
30ml: 0.1-1200ml/h,
50ml(60ml): 0.1-2000ml/h
Programmable and adjustable, Automatic/Manual bolus available

Bolus Volume

Range: 1.0~50.0ml, (0.1ml step)

Interface

RS-232

Brightness

1~10 levels can be selected

History records

5000 events stored can be checked and downloaded

Power source

AC power supply: AC 100 to 240V( +/-10%), 50/60Hz;
DC Power supply: 12~15V, power>15W;
Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. 12 hours of continuous operation

Accessories:

AC power line, Operational manual

Protection Class

Class I, Type CF, IPX4

Dimension / N.W

240mm*150mm*117mm , 2.0kg

Packing size/G.W

300mm*260mm*160mm, 3.0KG
