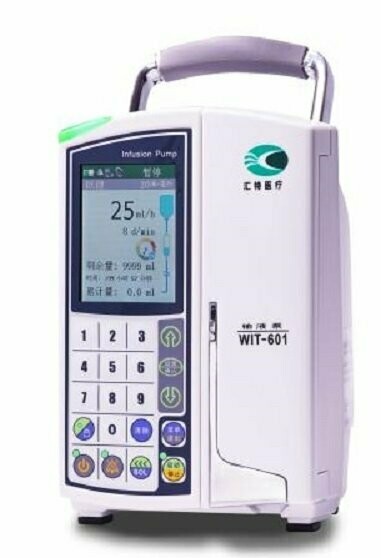

WIT601A Infusion Pump - 3 Years Warranty

Store / Human / Infusion & Syringe Pump
AU$1,089.00
In stock
Product Details

Main Features

  • Including 12 kinds of working mode: Volume / Drop / Micro / Programme / DOSE Weight / Drug Lab. / Manual Bolus.
  • A new generation of accuracy calibration technology, could directly enter the calibration value to fast calibrate of the machine batch, greatly enhance the efficiency of installation and maintenance.
  • Built-in 500 kinds of drugs, covering the clinical use of the drug dose of 54 units on the library, and could be connect with the PC for edit; export & import.
  • Comfort design with heater (Optional), Improve the experience of patients in low temperature infusion.
  • Support changes the Rate, Time, Dose, VTBI & other important parameters during the infuse working.
  • Advanced pressure detection technology, adjustable 20 level, and two option of units: mmHg / kPa.
  • With the unique alarm: Pre-alarm of end infuse, Pre-alarm of high pressure block and etc. to meet the needs of special treatment
  • IV set management, could add / remove / edit more than 40 kinds of tubes.
  • Powerful safety self-check function to ensure the pump working properly.

    Standard Package

    • WIT601A Infusion Pump
    • A/C Adapter
    • User Manual

    Technical Specification

    Function Option With Drug Lab. Without Drug Lab.
    Drug Lab. Built-in 500 kinds of drugs, covering the clinical use of the drug dose of 54 units on the library, and could be connect with the PC for edit; export & import. NONE
    Working Mode Rate/VTBI,Time/VTBI,Rate/Time,Volume,Drop,Micro,Simple Rate,Programmable,DOSE Weight,Drug Lab,Auto Bolus,Manual Bolus.
    IV Set Open System for 10d/ml,15d/ml,20d/ml,60d/ml (3.4mm - 4.5mm)
    IV Set management could add / remove / edit more than 40 kinds tubes
    Accuracy Volume Mode:≤ ±5%,Drop Mode:≤ ±2% (after calibrate)
    Calibrate Automatic or manual calibration of infusion accuracy
    Rate Volume: 0.1ml/h~1200ml/h Purge: 600ml/h Drop: 1d/min~400d/min
    VTBI 1~9999 ml or OFF
    Total Volume Σ 0~9999.9 ml
    KVO 1ml/h~5ml/h Adjustable,Default: 1ml/h
    Programmable Maximum 8 steps of different infuse rate / time / VTBI
    BOLUS Manual Bolus:long Press the Bolus key to infuse and release to stop Auto Bolus:short press the Bolus key and set the VTBI & Rate
    Upper Pressure High / Middle / Low, 3 level, could off on the menu.
    Down Pressure 200mmHg - 1200mmHg, 20 level, live pressure display, mmHg & kPa two units
    Pre-Alarm Occlusion When the pressure in the tube goes up, it has the function of early warning
    Pre-Alarm Finish 1 min~30 min, The alarm can be set ahead of VTBI
    Parameters Modify changes the Rate, Time, Dose, VTBI & other important parameters during the infuse working
    Keypad Locker Manual / Auto lock keyboard
    History Record Record 20000 infuse records, 10000 alarm records, can be downloaded to the computer to save & query
    Self-Test safety real time self-test function to ensure the pump working properly
    Bubble Detected by ultrasonic sensor with adjust setting 5 level, 50μL ~ 800μL,
    Drop Sensor Infrared sensor to detect the number of drops, monitoring the status in case the empty bottles
    Alarm Bubble, Door open, Finish, Pause timeout, Down Occlusion, Up Occlusion, Lower Battery or damage, Motor error, Incorrect IV Set-type, Pressure test failure, Motor failure, Abnormal drop rate, Heater failure and etc. 30 kinds safety monitoring alarm
    Light Tips 3 color light tips:Green for infuse working;Orange for low level alarm (counting working);Red for high level alarm (pump stop).
    Voice Tips Compliance YY 0709-2009 medical standard, Alarm and key volume level adjustable, with Mute function,
    Monitor High brightness color LCD, Adjustable brightness
    Communication RS485 port, connect with PC to update / download
    AC Power AC100V~240V,50Hz/60Hz,25VA
    Battery Ni-MH battery, DC9.6V, 2000mAh (after full charged, could continue work more than 5 hours by 25ml/h rate)
    Battery power query Live-time query battery life and battery charge status
    Class Class I, Type CF, IPX4
    Installation For round and square pole,Horizontal / Vertical
    Dimension 2.0kg , 130mm×120mm×195mm
    Environment 5℃~40℃; 20%~90% humidity; 70kPa~106kpa atmospheric
    Use Range For the patients with constant intravenous infusion of drugs

    Warranty: 3 Years
